Conveyor System
Conveyor System Parts
1. ROLLER BODY
The shell is made of precision smooth surface 'ERW' steel tube as per IS : 9295.
2.ROLLER ENDS
Bearing Housing made of Pressed steel sheet with
calibrated bearing seat, are welded with the periphery of
the steel tube, for maximum strength.
3. SPINDLE
Spindless are made from M. S. bright bars and are
precision ground at bearing and seal seating areas.
4. BEARING
Precision single-raw deep groove ball bearings with C3
clearance ate provided. Distance between bearings
and point of support at the shaft is very short and thus
ensure higher load carrying capacity and longer service
life.
5. SEALING
The double multi labyrinth seal ensures optimum
protection against the entry of dust and dirt in to the
bearings.
6. INNER SEAL
7. DUST COVER
8. RAIN CAP
LUBRICATION
Hi-lithium base-grease is filled in measured quantities in
bearing and seals, and rollers are sealed for life.
ADJUSTABILITY
Idler rollers are manufactured as per IS 8598 for Belt width as
per IS 4776 as well as to suit existing conveyour frame by
providing adapter.
SHAKTI can also design and manufacture Idler rollers for special
duty.
CONVEYOR ACCESSORIES

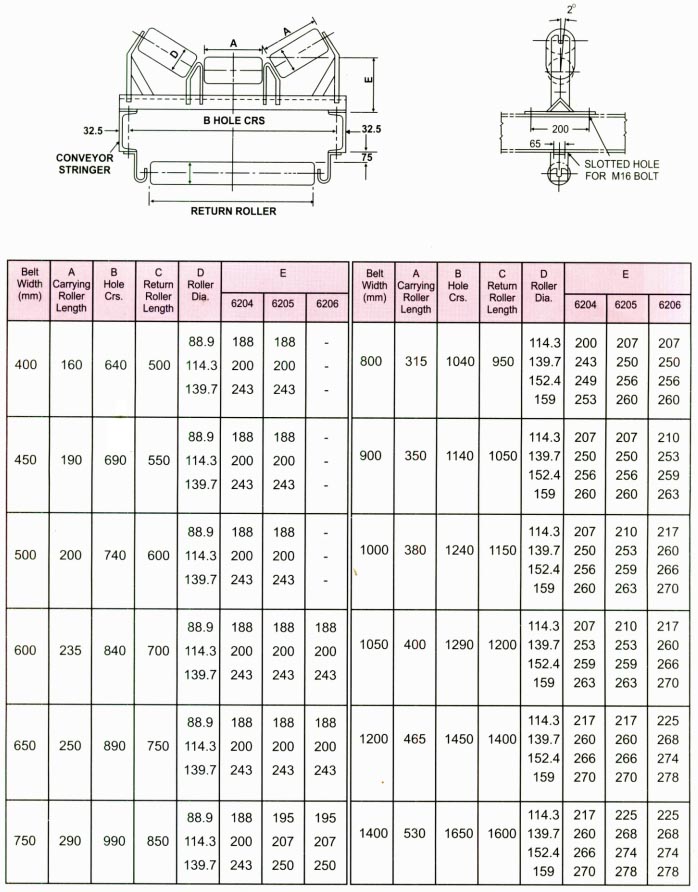

Carrying & Return Idler For Belt Conveyor

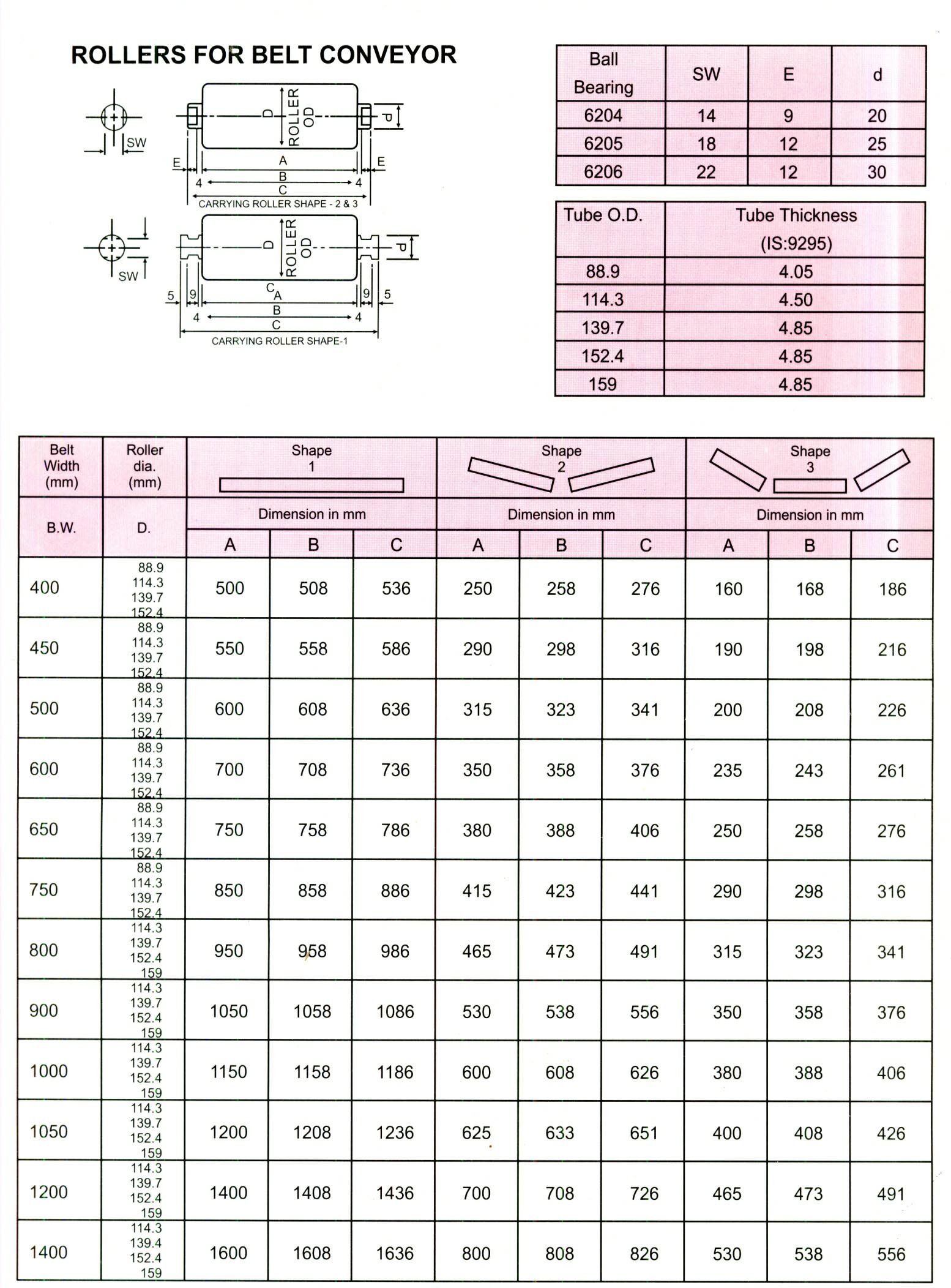

Rollers For Belt Conveyor
